PC-80B Handheld Medical ECG/EKG Machine Electrocardiograph Patient Monitor

Features

1.The device is not an ECG monitor as used in clinical institution or hospital, but is used for spot -check purpose ONLY.

2.It can be used to substitute the normal ECG examination or real time monitoring.

3.The measurement results are a useful reference for doctor, but do not make direct diagnostic or analytical decision based on the information provided by this device.

4.ECG waveform and interpretation of results are displayed clearly on dot -matrix LCD screen.
5.Advanced measuring technology provides steady and accurate ECG waveforms.

6.Seventeen types measurement result can be presented.

7.Up to 1200 records for quick measurement or 10 -hour data records for continuous measuring can be stored in built-in memory.

8.Data records can be reviewed, copied, deleted, and uploaded as well.

9.Power saving technique with automatic shutting-down function.
Two AAA batteries are used to support more than 10 hours working time.

Description

PC -80B Easy ECG Monitor is intended formeasuring and recording the ECG signal and average heart rate

of adult patient. It is applicable for use in clinics and homes,and convenient to operate by the patients

themselves. It can be used for continuous measuring with the adhesive ECG pads and lead wire connected to the device.

Specification

1.Display

Display Mode: Color LCD display

Screen Size (mm): 40*57.6

2.ECG Measurement

The number of measuring channel: Single channel ECG signal

Electrodes: 3 embedded metal electrodes or 3 adhesive ECG pads connected to the connector of

the device with lead wire

ECG Bandwidth: 1Hz-40Hz

Internal Noise Level: ≤30uVp-p

Heart Rate Range: 30-240bpm

Heart Rate Accuracy: ±2bpm or ±2%, whichever is greater

Display Scale: 5mm/mV ±10%

Common-mode rejection ratio (CMRR): ≥60dB

Wave Form Sweeping Speed: 20mm/s±10%

Measurement Modes: the detecting ECG signal can be detected by the following lead selection:

1) Palm (both hands on unit)

2) Chest (right hand and chest)

3) Leg (right hand and left leg)

4) ECG lead wire

3.Power

Power Supply: 2*AAA alkaline batteries

Supply voltage range: 2.7-3.3VDC

Max average working current: ≤50mA

Auto power-off: 35s±5s (without operation)

4.Classification

The type of protection against electric shock: Internally powered equipment

The degree of protection against electric shock: Type B appiled parts

The degree of protection against harmful ingress of liquid: Ordinary equipment without protecting

against ingress of liquid.

Electro-magnetic Compatibility: Group I, Class B

5.Data Memory

Up to 10-hour data records can be saved in the built-in memory

Stored data records can be uploaded to the computer by data cable

6. Operating environment:

Operating Temperature: 5°C-40°C

Operating Humidity: 30%-80%

Atmospheric pressure: 70kPa-106kPa

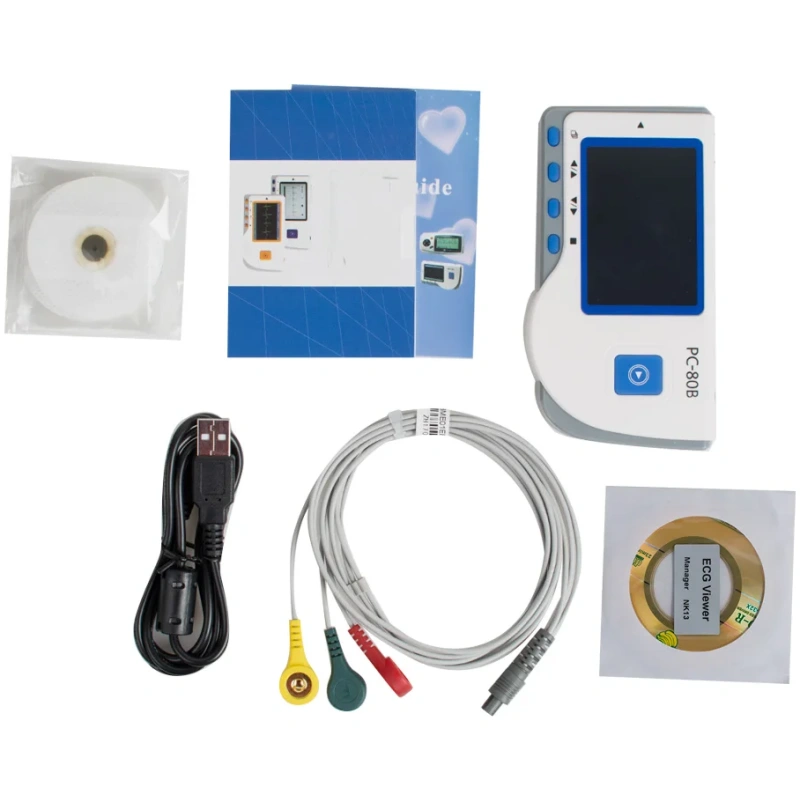

Include

1 x Machine main unit (without battery)

1 x English user’s manual

1 x Data cable

1 x ECG lead wire
